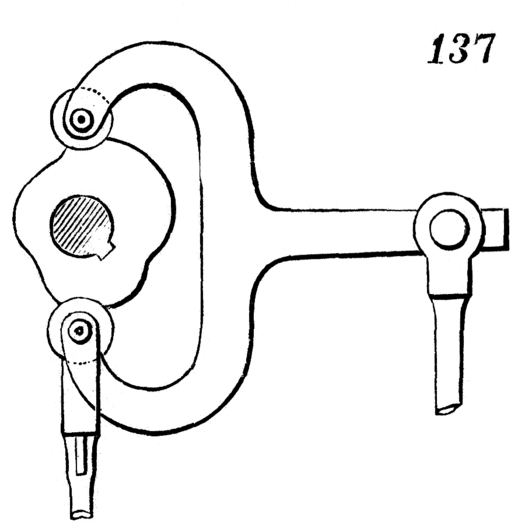

Movement No. 137 demonstrates an expansion eccentric mechanism used in French steam engines to operate the slide valve. An eccentric disk is fixed off-center on the crankshaft. As the crankshaft rotates, the eccentric disk revolves within its strap and drives a forked vibrating arm — a lever with a forked or yoke-shaped end that embraces the eccentric strap. The vibrating arm oscillates back and forth about its fixed pivot in response to the eccentric’s rotation. A valve-rod is attached to the bottom of this forked arm, so the oscillation of the arm imparts reciprocating rectilinear motion to the valve-rod, which in turn moves the slide valve to control steam admission and exhaust in the engine cylinder. The forked arm arrangement transmits the eccentric’s motion without the need for a separate connecting rod, resulting in a compact and mechanically efficient valve drive. This design was particularly favored in French steam engineering for its simplicity and precision.
137. Expansion eccentric used in France to work the slide-valve of a steam engine. The eccentric is fixed on the crank-shaft, and communicates motion to the forked vibrating arm to the bottom of which the valve-rod is attached.
