Movement No. 108 converts uniform rotary motion into uniform reciprocating rectilinear motion using a cylinder with two reverse-cut helical grooves. The cylinder has two grooves running in opposite helical directions — one going left-to-right and the other right-to-left — which intersect each other twice per revolution. A follower pin inserted into the groove rides along one helical path, traveling from one end of the cylinder to the other. When it reaches the intersection point, it is smoothly transferred onto the returning groove and travels back in the opposite direction. This elegant mechanism produces a perfectly continuous back-and-forth traversing motion with no abrupt reversal shock. It is widely known as a traverse or level-wind mechanism and is extensively used in thread-winding machines, fishing reel line guides, wire spooling equipment, and textile machinery where even, uniform layer-by-layer winding is essential.

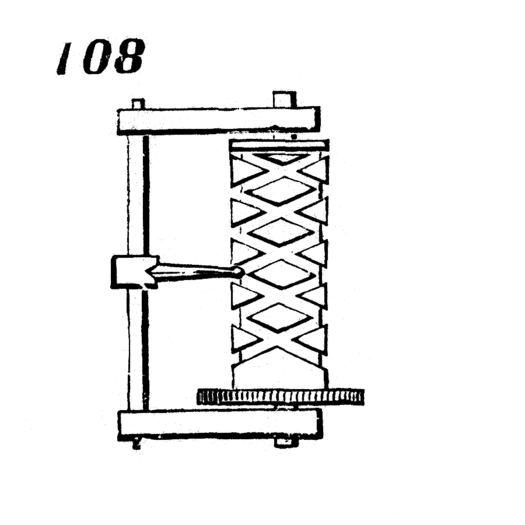

108. Uniform reciprocating rectilinear motion from uniform rotary motion of a cylinder, in which are cut reverse threads or grooves, which necessarily intersect twice in every revolution. A point inserted in the groove will traverse the cylinder from end to end.
